1260 ~ 1620nm 1x2 OADM Multiplexer 3 Port Single Channel CWDM Device

Name: 1260 1620nm 1x2 OADM Multiplexer 3 Port Single Channel CWDM Device
Brand: GEZHI or OEM
Price: 1 USD

Buy cheap 1260 ~ 1620nm 1x2 OADM Multiplexer 3 Port Single Channel CWDM Device product

Brand Name : GEZHI or OEM

Model Number : 1x2 OADM Multiplexer

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $10

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Application : Data Center

Fiber Connector : LC/UPC, FC/APC, SC/APC etc.

Channel Spacing : 20nm

Warranty Time : 3 years

Use : WDM System

Contact Now

Product description

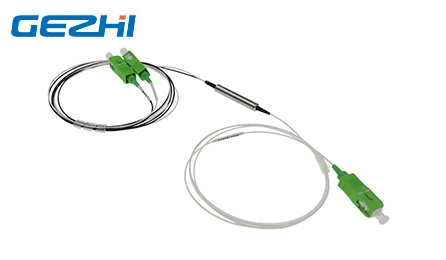

1260 ~ 1620nm 1x2 OADM Multiplexer 3 port single Channel CWDM device

The 1x2 OADM Multiplexer device is thin film filter technology and metal bonding micro optics packaging for improved performance, such as lower insertion loss and wide channel bandwidth, higher thermal stability, flexible channel configuration with a competitive cost structure.

1260 ~ 1620nm 1x2 OADM Multiplexer 3 Port Single Channel CWDM Device

Features

Low Insertion Loss

Highly Stable & Reliable
Epoxy-Free Optical Path

High Channel Isolation

Low Profile Packaging

Applications

Fiber Amplifier System

Add/Drop Channels

WDM Systems

CATV Fiberoptic Links

Specification

Parameter		Specification
Channel Wavelength (nm)		1260 ~ 1620
Center wavelength Accuracy (nm)		±0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		>13
Pass Channel Insertion Loss (dB)		≤0.6
Reflection Channel Insertion Loss (dB)		≤0.4
Channel Ripple (dB)		<0.3
Isolation (dB)	Adjacent	>30
	Non-adjacent	>40
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-20~+75
Storage Temperature (℃)		-40~85
Package dimension (mm)		Φ5.5x34 (Bare fiber) Φ5.5x38 (900um Loose tube)

Note: 1. Customization is available.

2. Specified with connector

Drawing

It drops or adds one wavelength-specific channel from the network fiber in single-seded transmission.

1260 ~ 1620nm 1x2 OADM Multiplexer 3 Port Single Channel CWDM Device

1x2 Single Channel CWDM add drop multiplexer for EAST or WEST for bi-directional data transmission over single fibers.

1 Channel OADM filter cascading

1260 ~ 1620nm 1x2 OADM Multiplexer 3 Port Single Channel CWDM Device

1x2 OADM Multiplexer 3 port single Channel CWDM device

1260 ~ 1620nm 1x2 OADM Multiplexer 3 Port Single Channel CWDM Device

High Quality & Stability Material

Use Import Filter with High Reliable & Stable quality

Use Original EMI OPTOCAST 3410-VM Glue

Use High Quality G-Lens and Collimator

Test Enviroment

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

100% Testing Before Shipment

Optical Spectrum Analysis
