1x2 FWDM Device T1550R1310/1490nm Steel Tube 1meter Without Connector Gpon Fwdm

Name: 1x2 FWDM Device T1550R13101490nm Steel Tube 1meter Without Connector Gpon Fwdm
Brand: Gezhi or OEM
Price: 1 USD

Buy cheap 1x2 FWDM Device T1550R1310/1490nm Steel Tube 1meter Without Connector Gpon Fwdm product

Brand Name : Gezhi or OEM

Model Number : GZ-1550nm FWDM Device

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $7

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Application : Transmitters And Fiber

Fiber Lenght : 1m, 2m, Or Other

Connector : LC/SC/FC/ST (PC Or APC)

Package : Steel Tube

Wavelength : Pass 1550nm Reflect 1310&1490nm

Product Name : FWDM WDM Filter

Network : Wireless Lan, Wired LAN, 4g

Warranty Time : 3 Years

Use : FTTH

Contact Now

Product description

1x2 FWDM Device T1550R1310/1490nm Steel tube 1meter without connector gpon fwdm

FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.

GEZHI Photonics provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".

1x2 FWDM Device T1550R1310/1490nm Steel Tube 1meter Without Connector Gpon Fwdm

Specification

Type		FWDM
Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50,1490±10, 1550±10 1610±10, 1625±25, 1650±20	nm	T1550 R1310/1490
		T1490 R1310/1550
		T1310 R1490/1550
		T1550/1610 R1310/1490
		T1550/1625 R1310/1490
		T1625 R1310/1490/1550
		T1650 R1310/1490/1550
Transmission insertion loss	dB	≤0.80
Reflection insertion loss	dB	≤0.60
Transmission channel isolation	dB	≥30
Reflection channel isolation	dB	≥17
PDL	dB	≤0.1
Wavelength thermal stability	nm/℃	≤0.003
Insertion loss thermal stability	dB/℃	≤0.005
Directivity	dB	≥55
Return loss	dB	≥45
Operating temperature	℃	-20~+70
Storage temperature	℃	-40~+85

Note: 1. Customization is available.

2. pecified without connector, and add an additional 0.2dB loss per connector.

Item Details
Pass(Transmission)Channel: 1550nm
Reflection Channel: 1310nm and 1490nm
High Isolation, Reliability and channel isolation
Low Insertion loss and excellent environmental reliability
RoHS Compliant

Package Type
Glass Tube Package for 250um bare fiber
Steel Tube package for 250um bare fiber and 900um fiber
ABS box for 900um, 2.0mm and 3.0mm fiber
Note: 250um bare fiber is too finne to be equiped with connector

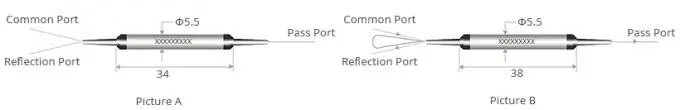

Mechanical Drawing

1x2 FWDM Device T1550R1310/1490nm Steel Tube 1meter Without Connector Gpon Fwdm

Picture A is for T13/R15, T14/R1315, T1415/R13 FTTX Filter WDM
Picture B is for T15/R13, T13/R1415, T15/R1314, T1314/R15 FTTX Filter WDM

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
